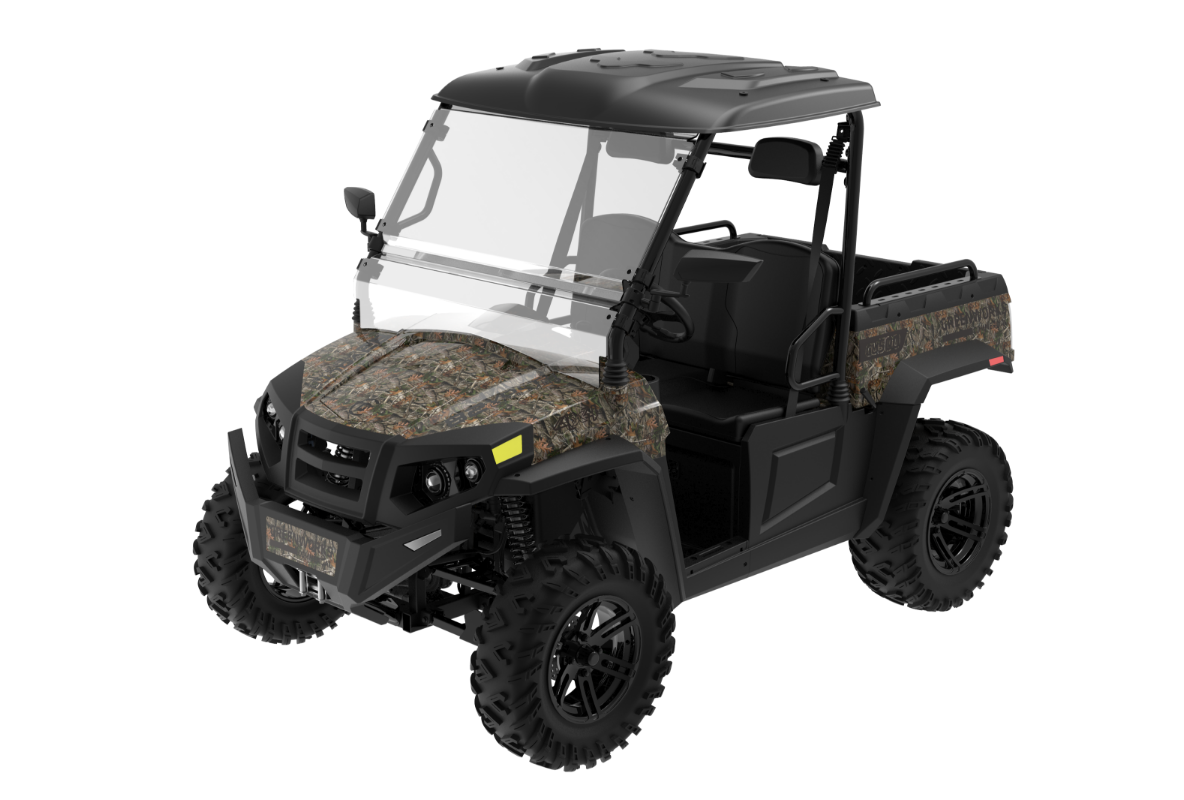

Véhicule utilitaire 82V 500 Camo | U500SC
- Tout électrique : la batterie 82 V/8 kWh offre une puissance équivalente à celle d'un moteur à essence de 22 CV
- Zéro émission : sans danger pour un fonctionnement en intérieur et en extérieur

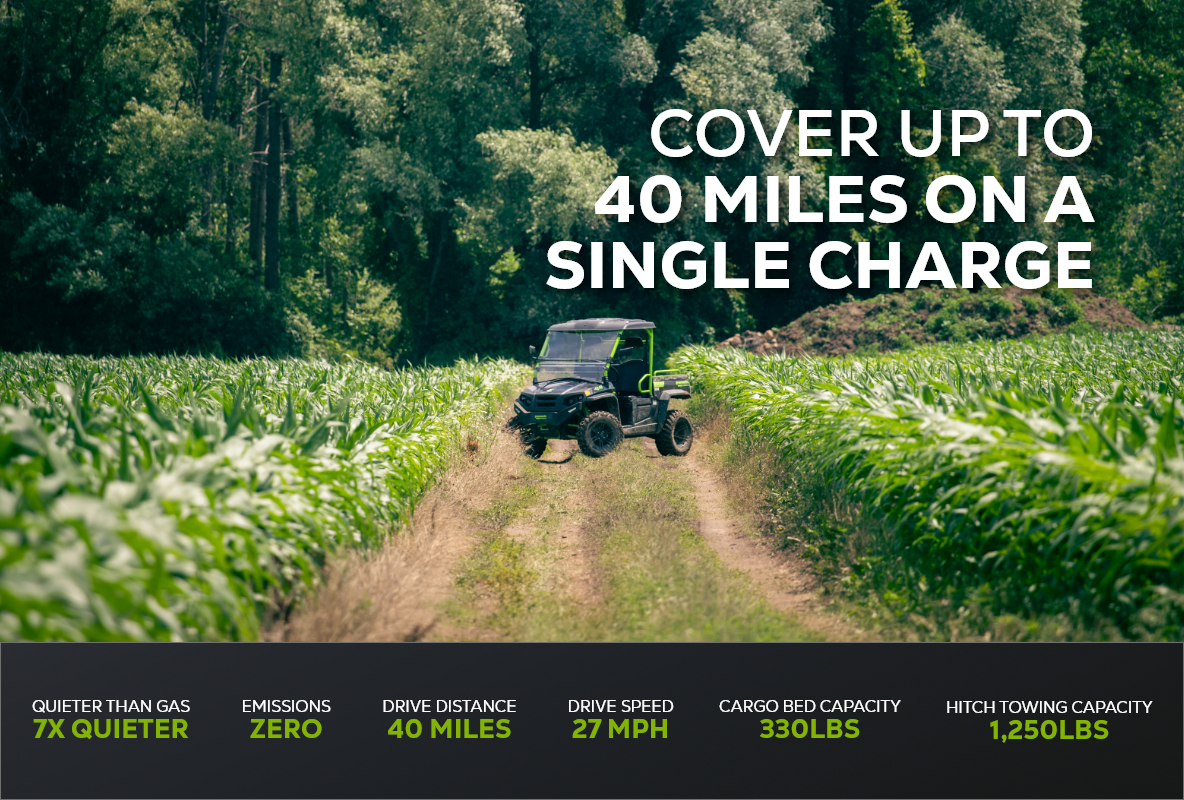

- Autonomie par charge : parcourez jusqu'à 40 miles avec une seule charge (temps de charge de 7 heures)

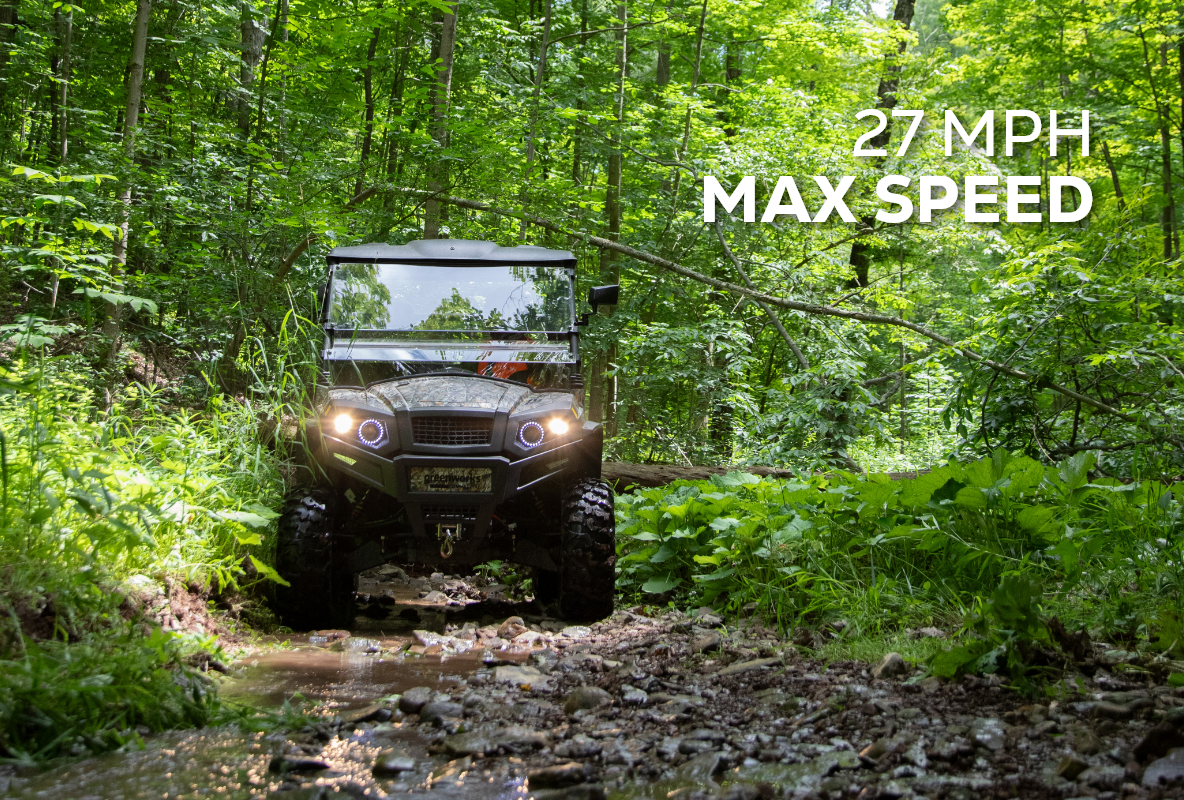

- Vitesse au sol : vitesse maximale de 27 MPH
- 4WD : affrontez toutes les conditions avec un système d'entraînement direct
- Tout-terrain : garde au sol de 10 pouces, suspension avant indépendante et empattement de 72,5 pouces
- Conçu pour fonctionner : capacité de remorquage de l'attelage arrière jusqu'à 1 250 lb
- Benne basculante à ressorts : la benne basculante de 32 x 42 x 12 po peut transporter jusqu'à 330 lb
Description
Description

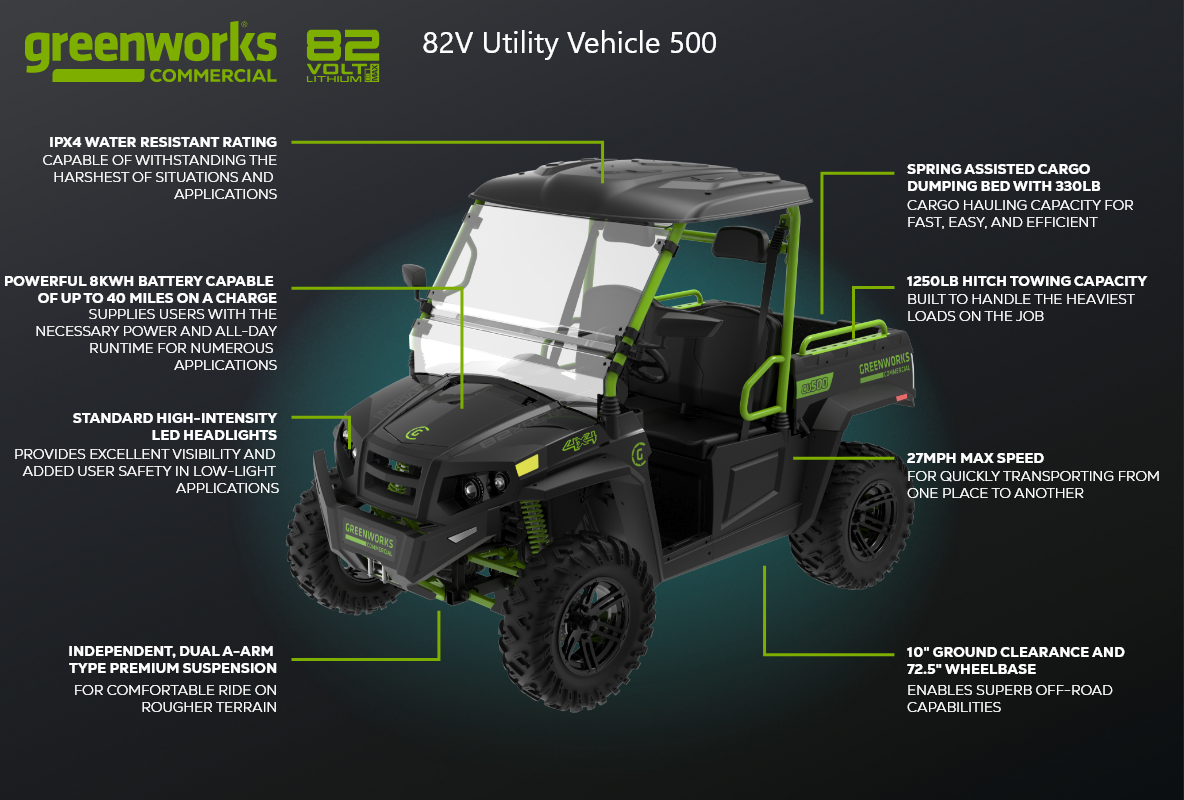

Engineered with the cutting-edge 8kWh max gTRON Drive™ System, this high-performance UTV offers the equivalent power of a 22 HP gas engine without the complex engine maintenance required to upkeep gas-powered UTVs. From intelligent terrain adaptation to powerful hauling capabilities, the U500SC combines efficiency and sustainability, making it the smart choice for professionals.
With the U500SC, you can expect:
- Long-Lasting Range: The 8kWh battery module delivers an impressive 40-mile range with a maximum speed of 27 MPH on a single charge.
- Warranty Assurance: The U500SC is covered by a 5-year battery, 2-year bumper-to-bumper warranty.
- Superior Handling: The U500SC’s intelligent control system automatically adapts to terrain. Take on slopes up to 20 degrees with a 10" ground clearance and a 72.5" wheelbase.
- Heavy-Duty Capacity: Tackle heavy-duty tasks with ease, thanks to the 330 lbs. capacity spring-assisted dump bed, 1,000 lbs. payload capacity, and 1,250 lbs. rear towing capability.
Caractéristiques
Caractéristiques

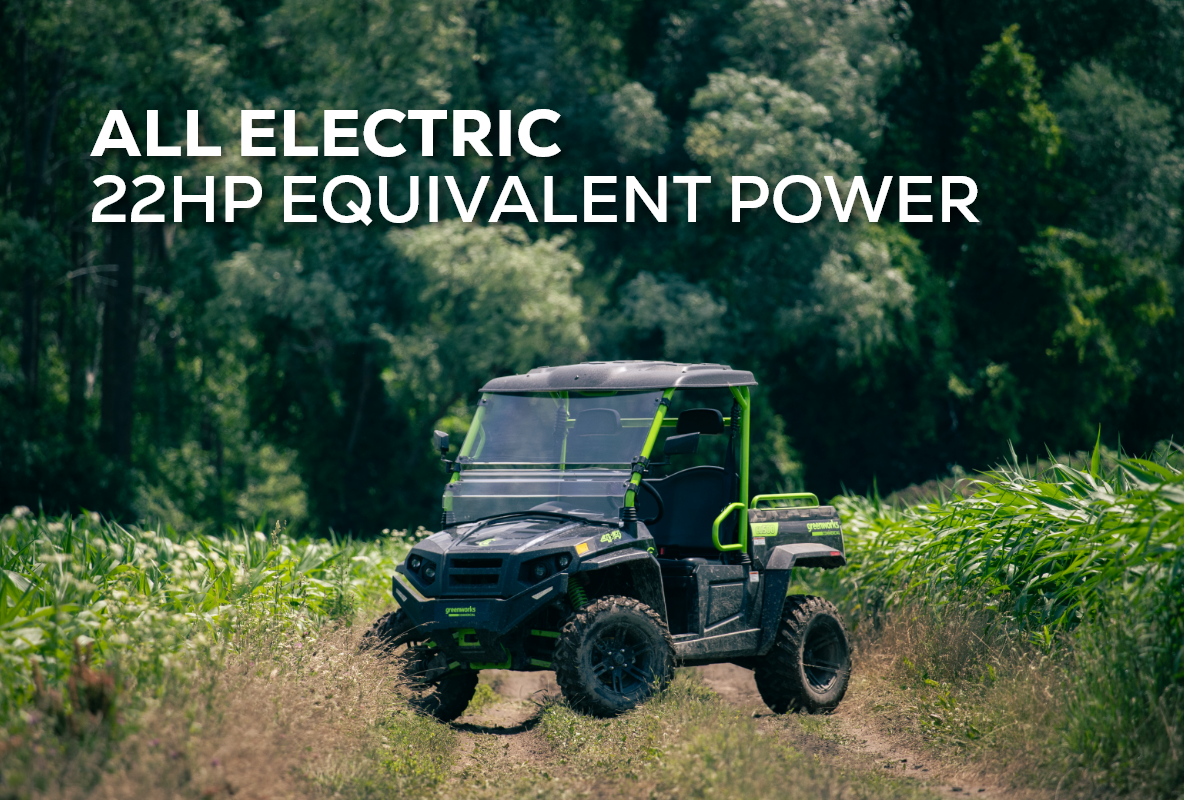

ALL ELECTRIC

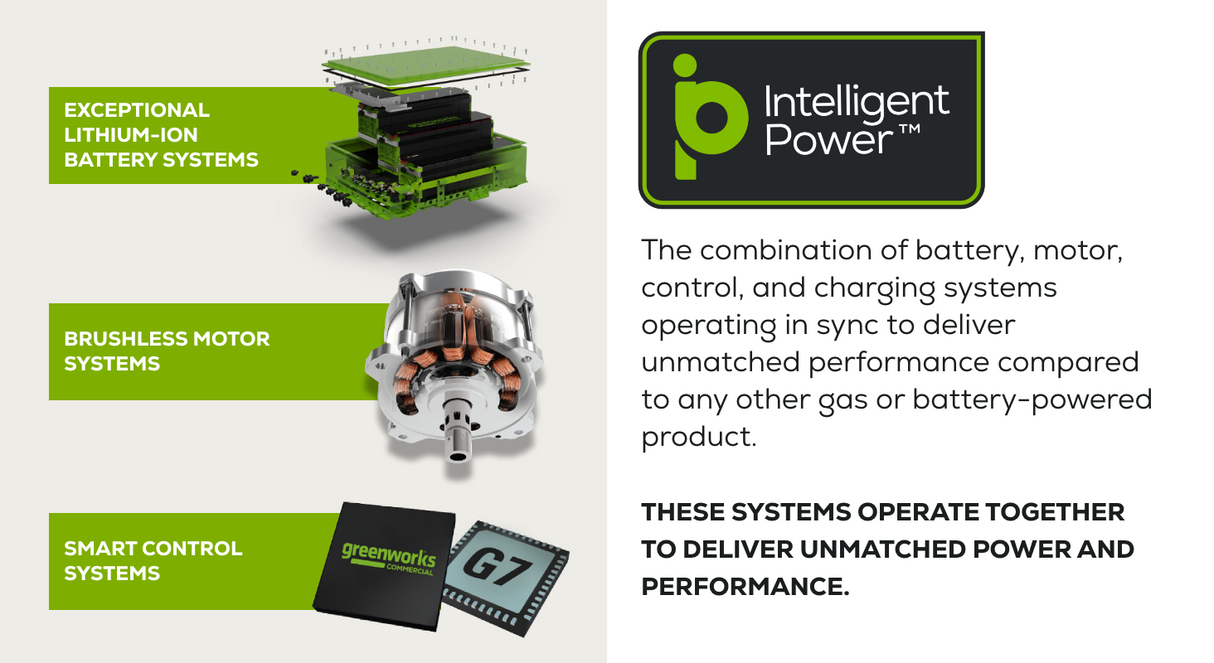

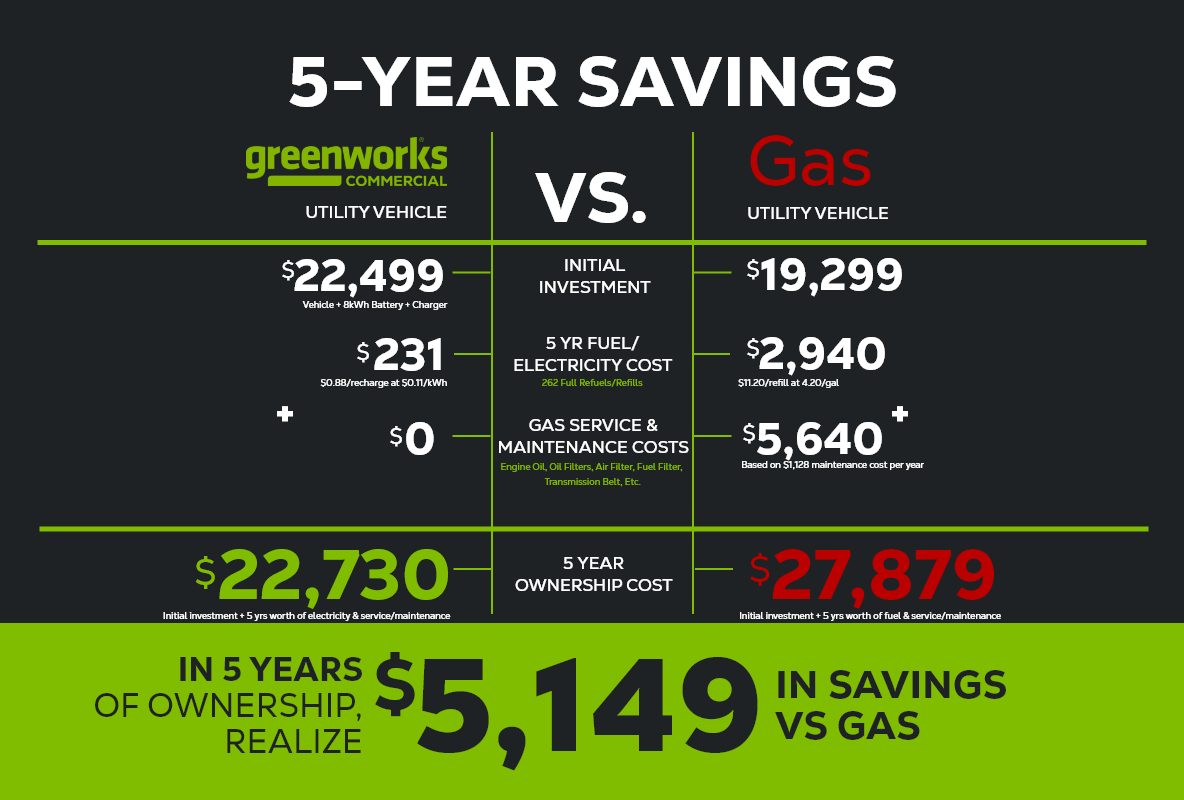

The U500SC’s 8kWh max gTRON Drive™ System provides powerful, all-electric operation equivalent to a 22 HP, 352 cc displacement gas engine with the benefits of reduced maintenance costs, quieter operation, and flexibility. With its efficient 82V lithium-ion battery, the U500SC helps you save up to $5,000 over 5 years versus gas-powered UTVs.

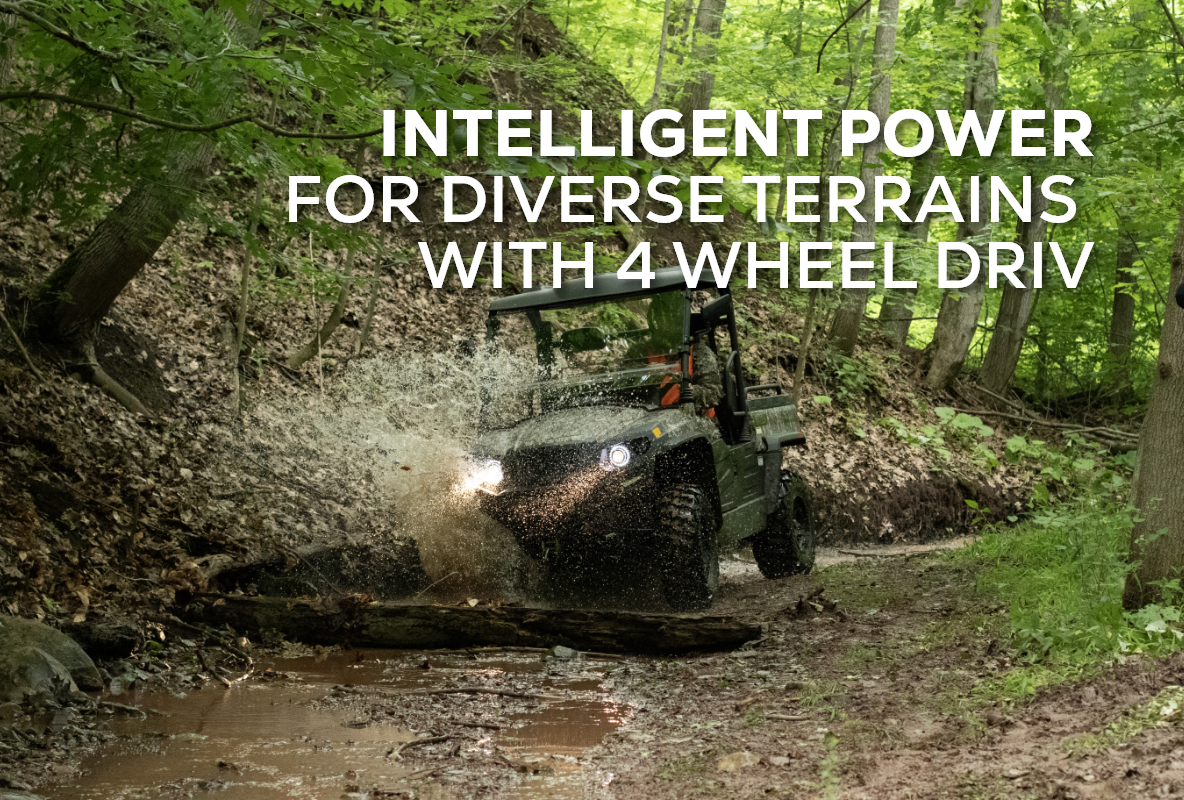

ALL TERRAIN
The U500SC’s remarkable 10-inch ground clearance and expansive 72.5-inch wheelbase ensure unparalleled stability and maneuverability to heighten productivity and reduce operational challenges. The increased ground clearance enables it to surmount obstacles with ease, while the extended wheelbase contributes to a smoother and more controlled ride.

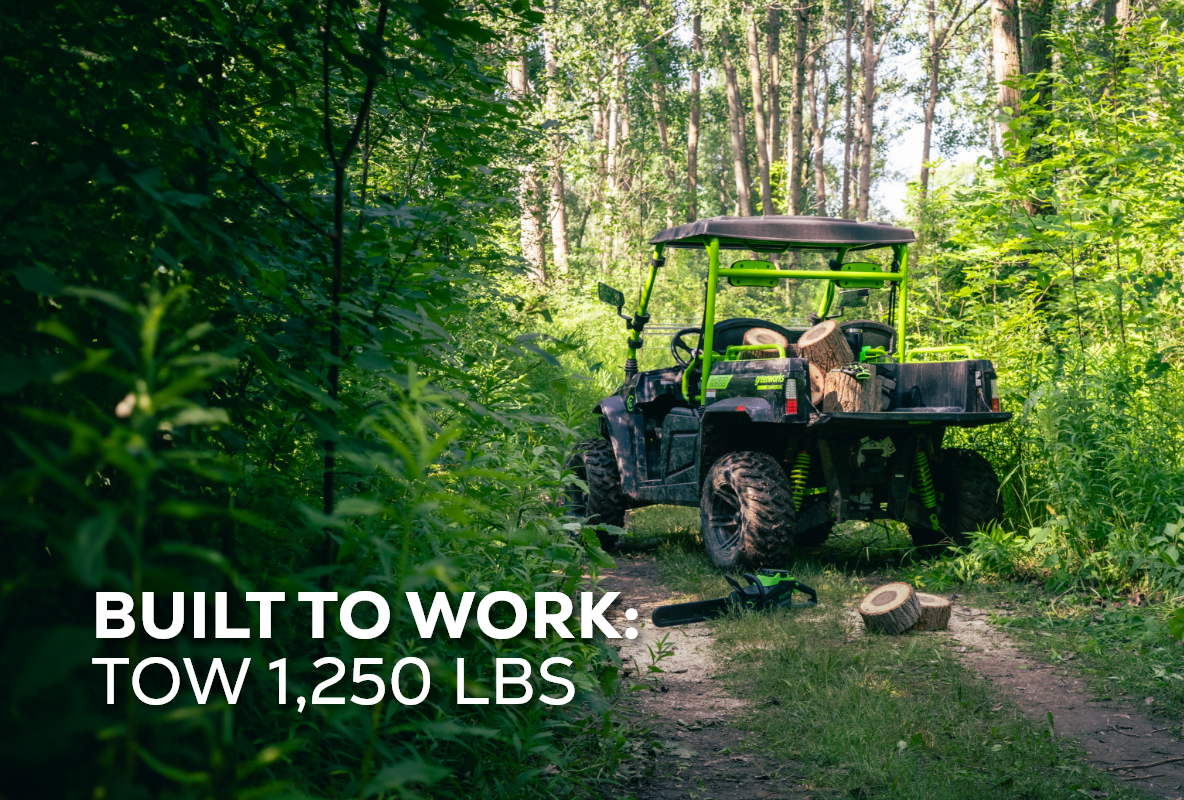

BUILT TO WORK
The U500SC's robust design is tailored for maximum efficiency with a remarkable 1,000 lbs. payload capacity and 1,250 lbs. rear towing capability. Whether you're hauling equipment or towing a trailer, this UTV delivers unparalleled versatility and efficiency to streamline operations.
SPRING-ASSISTED CARGO DUMP BED
With a 32x42x12-inch cargo bed capable of transporting up to 330 lbs., the U500SC is an ideal solution for diverse commercial applications. The spring-assisted system ensures smooth and controlled operation when dumping materials or unloading equipment, and the generously sized cargo bed efficiently transports tools, equipment, and materials.
Spécifications
Spécifications
UTV LINE UP
-v1697119122242.png?268x165)
|
|
|
|
| MODEL | CU400W | CU500SC & CU500SB | CU800SC & CU800SB |
| BATTERY CAPACITY | 8kWh | 8kWh | 16kWh |
| MAX RANGE | 65 Miles | 40 Miles | 75 Miles |
| MAX FORWARD SPEED | 15 MPH | 27 MPH | 29 MPH |
| TOWING CAPACITY | 500 Lbs. | 1,250 Lbs. | 1,500 Lbs. |
| PAYLOAD | 1.000 Lbs. | 1,000 Lbs. | 1.000 Lbs. |
| GROUND CLEARANCE | 8.5 In. | 10 In. | 12.2 In. |
| OPERATING WEIGHT | 1,069 Lbs. | 1,458 Lbs. | 1,752 Lbs. |
UTV LINE UP
|
|
|
|
|
| MODEL | CU400W | CU500SC & CU500SB | CU800SC & CU800SB |
| BATTERY CAPACITY | 8kWh | 8kWh | 16kWh |
| MAX RANGE | 65 Miles | 40 Miles | 75 Miles |
| MAX FORWARD SPEED | 15 MPH | 27 MPH | 29 MPH |
| TOWING CAPACITY | 500 Lbs. | 1,250 Lbs. | 1,500 Lbs. |
| PAYLOAD | 1.000 Lbs. | 1,000 Lbs. | 1.000 Lbs. |
| GROUND CLEARANCE | 8.5 In. | 10 In. | 12.2 In. |
| OPERATING WEIGHT | 1,069 Lbs. | 1,458 Lbs. | 1,752 Lbs. |
TOW/HAUL SPECS
| Wheelbase | 72.5" |
| Ground Clearance | 10" |
| Payload Capacity | 1000lbs |
| Tow Capacity | 1500lbs |
| Horsepower | 31HP Equivalent |
| Engine Displacement (cc) | 496cc Equivalent |
| Suspension System | Independent, Dual A-Arm Type |
| Brakes (Front/Rear) | Hydraulic Disk Brakes |
| Cargo Bed Capacity | 550lbs |
| Cargo Bed Dims | 35"(L) × 45" (W) × 12"(D) × 10.24cu.ft (V) |
| Ground Speed | Up to 29 MPH |
| Tires/Wheels | Front: 28×9-14 | Rear: 28×11-14 |
| Safety Features | Standard High-Intensity LED Headlights |
| Seat (Type, Cushioning, Arm Rest) | Bench seat |
| Steering Controls | EPS |
| Lighting | High-Intensity LED Headlights |
| Unit Weight (No battery) | 1676LBS |
| Unit Dimensions | 118"(L) × 61"(W) × 75.5"(H) |
| Accessory / Tool Mounting Capability | Front Hitch Winch, Mud Tire Options, Tool Rack |
| IPX Rating | IPX4 Water Resistant |
BATTERY
| Voltage | 82V |
| Capacity (Wh) | 16kWh |
| Weight (Ibs.) | 187Ibs |
| Dimensions | 9.6"×22"×18.4" |
CHARGER
| Charge Watts | 1.5kW |
| Charge Time | 9 hours |
| Weight | 6.2Ibs |
| Dimensions | 13.2"×7.6" |
DRIVE SYSTEM
| Voltage | 82V |
| Motor Type | AC Induction |
| Power Rating | 15kW Max. |
| Main Gearcase | Direct Drive |
| Wheel Drive System | 4WD |
| Front Differential Lock | Electric control |
| Multi-Mode Switch | L/M/H |
Manuels
Manuels
Garantie
Garantie
Interested in learning about the warranty for this tool? Please visit our warranty page to learn more
